Motorola Original RSM
IP54 Rated
2-Pin Connector
The most popular shoulder microphone for Motorola commercial radios — windporting technology, 1-watt speaker, emergency button, and 3.5mm earpiece jack in an IP54-rated body.

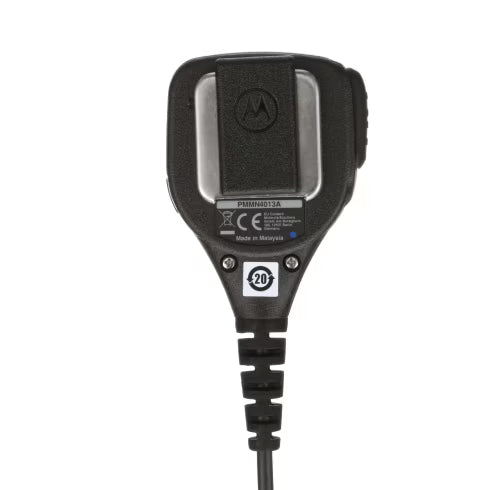

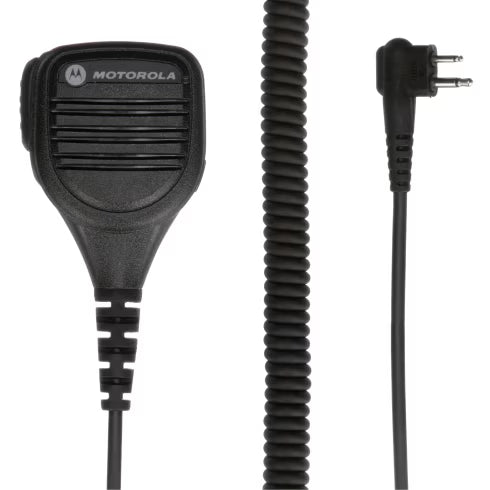

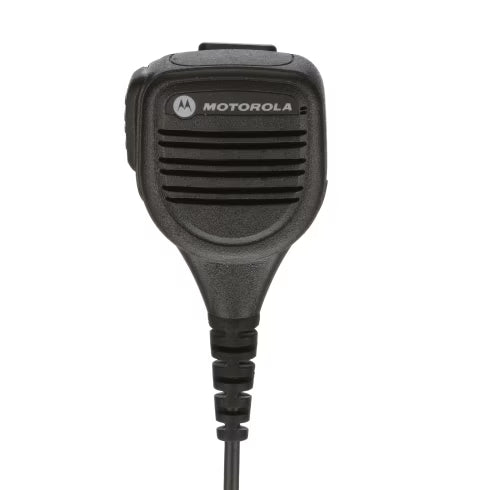

The Motorola PMMN4013 is a genuine Motorola Remote Speaker Microphone (RSM) designed for the full range of Motorola 2-pin commercial two-way radios including the CP200D, CP185, CP100D, BPR40, and R2 series. It attaches to a lapel, shoulder, or safety vest via a rotating swivel clip — keeping the radio on the belt while placing the speaker and microphone closer to the ear and mouth for hands-free communication in loud, demanding environments.
Built with Motorola's Windporting technology that allows audio to pass through the speaker grille even when the port is blocked by rain or debris, a large glove-friendly PTT button, an orange emergency button, and a 3.5mm audio jack for a discreet earpiece. Available at ITFactory.ca — Canada's trusted source for Motorola two-way radio accessories.
|
Compatible Motorola Radio Models
Compatible with all Motorola portables using the standard 2-pin (M1) accessory connector, including:
| CP100D |
CP150 |
CP185 |
CP200 |
| CP200D |
BPR40 |
BPR40D |
BPR50dX |
| DEP450 |
DP1400 |
EP450 |
GP300 |
| GP68 |
GP88 |
P1225 |
PR400 |
| R2 |
RDU4100 |
RDU4160D |
RMU2080D |
| SP50 |
CLS1110 |
CLS1410 |
Mag One Series |
Also sold as PMMN4013A. If your radio model is not listed above, contact ITFactory.ca to confirm 2-pin connector compatibility before ordering. Note: this is the standard version and is not Intrinsically Safe (IS) rated. For IS-rated environments, the PMMN4027 is required.
|
Key Features
|
Windporting Technology
Audio passes through the speaker grille even when the microphone port is blocked by rain, mud, or debris — keeping transmissions clear in outdoor environments where conventional mics fail. The coiled cord allows talking and listening without removing the radio from the belt or holster.
|
1-Watt Front-Facing Speaker
A powerful 1-watt speaker delivers loud, clear audio that cuts through high-noise environments — construction sites, warehouses, events, and busy retail floors. The front-facing design ensures audio is directed toward the user, not muffled against the chest.
|
|
Large Glove-Friendly PTT Button
An oversized Push-to-Talk button on the side of the mic is easy to activate with a full glove — essential for construction workers, security personnel, outdoor crews, and anyone working in cold weather or protective gear.
|
Orange Emergency Button
A dedicated orange emergency button enables rapid emergency call activation without fumbling for the radio — critical for lone workers, security teams, and any deployment where fast distress signalling matters.
|
|
3.5mm Audio Jack for Earpiece
A side-mounted 3.5mm jack accepts any compatible Motorola receive-only earpiece for discreet monitoring — useful for security staff, event personnel, retail managers, and anyone who needs to hear radio traffic without broadcasting to those around them.
|
IP54 Rated Housing
Protected against dust ingress and water splashing from any direction — suitable for outdoor use, wet environments, and job sites where equipment is regularly exposed to rain, splashes, and dirty conditions.
|
|
Rotating Swivel Clip
A 360-degree rotating swivel clip secures the microphone to any lapel, shoulder epaulette, safety vest strap, or shirt collar — and rotates to keep the speaker facing forward regardless of how it is attached. The spring clip is field-replaceable if it becomes worn.
|
Noise-Cancelling Microphone
The built-in microphone actively reduces background noise — machinery, crowd noise, traffic — so your transmissions are heard clearly on the other end even in loud working environments.
|
|
Standard 2-Pin (M1) Connector
Plugs directly into any Motorola radio with the standard 2-pin M1 accessory connector — the most common connector on Motorola's commercial radio lineup. No adapters required for compatible models.
|
Genuine Motorola Original Accessory
This is an OEM Motorola accessory — not a third-party alternative. Genuine accessories ensure matched audio impedance, correct PTT voltage, and full compatibility with Motorola's radio firmware without risk of damage to the accessory port.
|
Who Is This For?
The PMMN4013 is the standard shoulder mic choice for any business or organization running Motorola 2-pin commercial radios. It is especially well suited for environments where keeping hands free matters, where loud background noise makes direct radio listening difficult, or where discreet earpiece monitoring is required.
Security and loss prevention
Construction and warehouse teams
Event and venue staff
Retail and hospitality operations
Facilities management and maintenance
Lone workers requiring emergency signalling
Technical Specifications
| Brand |
Motorola Solutions |
| Part Number |
PMMN4013 / PMMN4013A |
| Type |
Remote Speaker Microphone (RSM) — Shoulder Mic |
| Speaker Output |
1 Watt |
| Microphone |
Noise-cancelling, omnidirectional |
| Weather Rating |
IP54 (dust and splash resistant) |
| Connector Type |
2-pin (M1) — standard Motorola commercial connector |
| Audio Jack |
3.5mm — receive-only earpiece connection |
| PTT Button |
Large, side-mounted, glove-friendly |
| Emergency Button |
Yes — orange |
| Cable |
Coiled cord |
| Mounting |
360° rotating swivel clip (field-replaceable) |
| Special Technology |
Windporting — audio passes through grille when port is wet or blocked |
| Intrinsically Safe |
No — standard version only (see PMMN4027 for IS) |
| Drop Rating |
Withstands 1.5m (5 ft) drop onto concrete |
| Warranty |
12-month manufacturer warranty |
| Sold by |
ITFactory.ca — Canadian authorized Motorola reseller |
Why Buy from ITFactory.ca?
ITFactory.ca is a trusted Canadian retailer for Motorola two-way radio accessories, serving businesses and organizations across the country. Every product we sell is genuine and backed by our team.
| → Authorized Canadian Motorola reseller |
→ Genuine Motorola OEM product |
| → Fast shipping across Canada |
→ Business invoicing available |
| → Volume pricing for fleet orders |
→ Bilingual customer support |
|
Frequently Asked Questions
Is the PMMN4013 compatible with the CP185 and CP100D?
Yes. The PMMN4013 is fully compatible with the CP185 and CP100D, as well as the CP200, CP200D, BPR40, R2, and the other 2-pin Motorola radio models listed above. It connects via the standard Motorola 2-pin (M1) accessory connector common across Motorola's commercial radio lineup.
What earpiece can I use with the 3.5mm audio jack?
The 3.5mm jack on the PMMN4013 accepts any standard Motorola-compatible receive-only earpiece with a 3.5mm mono plug — such as the Motorola AARLN4885 or similar surveillance-style earpieces. The earpiece is not included and is sold separately. Contact ITFactory.ca for compatible earpiece options for your specific radio deployment.
What is windporting and why does it matter?
Windporting is Motorola's technology that allows audio to pass through the speaker grille even when the microphone port is blocked — by rain, mud, a gloved hand, or a safety vest pressed against the mic. On a conventional microphone, a blocked port means muffled or inaudible audio. Windporting eliminates this problem, ensuring reliable transmissions in outdoor and physically demanding environments where conventional speaker mics fail.
Is this version Intrinsically Safe?
No. The PMMN4013 is the standard version and is not Intrinsically Safe (IS) rated. For environments requiring IS-certified accessories — such as oil and gas facilities, chemical plants, grain handling operations, or other areas with explosive atmospheres — the Motorola PMMN4027 is the appropriate IS-rated alternative. Contact ITFactory.ca if you require IS-rated accessories.
What is the difference between PMMN4013 and PMMN4013A?
These are the same product. Motorola adds a suffix letter to denote production version revisions — the specifications, features, and compatibility are identical. You will receive the current production version available at the time of your order.
Can the swivel clip be replaced if it breaks?
Yes. The spring swivel clip on the PMMN4013 is field-replaceable — it can be swapped out without tools if it becomes worn or damaged in heavy use. Replacement clips are available as a separate Motorola accessory. Contact ITFactory.ca for details.
